產品介紹

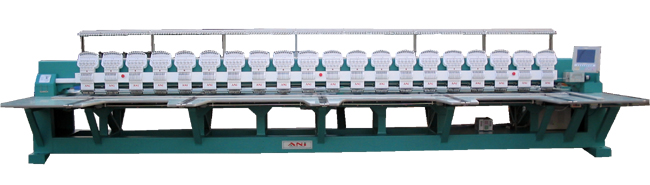

繡花機
型號規格：
| 頭數 | 20頭 | ||
| 頭距 | 550 mm | ||
| 針數 | 9針 | ||
| 產品型號 | GYH/P-920-55-68 | 刺 繡 范 圍 | 550X680mm |
| 產品尺寸 | 7625X1810mm | 包 裝 尺 寸 | 7725X2010mm |
| 產品凈重 | 3.5T | 產 品 毛 重 | 3.5T |
基本參數:
| 針長 | 0.1-12.7mm |
| 速度 | 300-850rpm/300-1000rpm |
| 主軸馬達 | 高效AC伺服馬達/勵磁馬達X2 |
| X.Y電機 | 脈沖馬達X2 |
| 電源 | 單相220V/240V(50/60HZ); 三相220V/240V/380V(50/60HZ) |
| 功率 | 0.8kw/1.0kw/1.5kw |
| 儲存量 | 標準:1,000,000 針 |
主要功能特點:
| 花樣存儲能力 | 內存容量1000000針，最多可存儲99個花樣，具有足夠的容量 |
| 花樣任意縮放及旋轉 | 花樣可在50%-200%范圍，以1%為單間位對花樣進行放大或縮小，或以1為單位，對花樣進行任意角度旋轉及鏡像。 |
| 適應性強 | 二進制、三進制及ZSK制式的磁盤輸入 |
| 平包針補償 | 可根據需要，對平包針的針跡長度進行增加或減少 |
| 多國語言系統 | 單可支持中、英、韓西班牙、土耳其等語言的轉換 |
| 速度自動控制 | 刺繡過程中，根據針跡的特點，自動控制刺繡速度的變化，便得刺繡理穩定，最高轉速可達750-800轉/分鐘 |
| 自動反復繡作 | 經過對機器的設定，同一花樣可實現縱橫方向多達次的繡作 |
| 花樣周邊空走 | 刺繡前，可用此功能進行同邊空走及繡出中心十字線，方便定位，尤其適合帽繡 |
| 內存花樣的顯示 | 采用大屏草帽液晶顯示，所有內存花樣可以觀看其圖形，對選擇花樣的刺繡和花樣的輸出極為方便 |
| 高低速針跡空走 | 在刺繡中可配合使用低速空走、高速空走及多種方式的空走，更加方便補繡，對位等 |
| USBR接口（可選） | 增加USB接口可直接插入U(xiǎn)盤，與普通相比，U盤容量更大，讀寫速度更快，攜代管理更方便。 |
Type and standard：
| Head | 224heads | ||
| Head interval | 137mm | ||
| Needle | 3Stitches | ||
| Product type | GYH/P-920-55-68 | Embroidery area | 550x680mm/td> |
| Table size | 7625x1810mm | Packing size | 7725x2010mm |
| Suttle | 3.5T | Gross weight | 3.5T |
Specifications:
| Stitch length | 0.1-12.7mm |
| Speed | 300-850rpm/300-1000rpm |
| Main motor | High Efficiency AC Servo Motor/Excitation Motor X 2 |
| X.Ymotor | Pulse MotorX2 |
| Power source | 1-phase220V/240V(50/60HZ); 3-phase220V/240V/380V(50/60HZ) |
| Power consumption | 0.8kw/1.0kw/1.5kw |
| Memory capacity | standard:1,000,000 stitches |
Main Function Introduction:
| Design Storage Capacity | Storage up to 1000000.stitches and 99 designs |
| Design scaling and rotating | Based on 1%,the design can be scaled within the range of 50%to 200%,it also can be rotated in any direction or angle based on 1° |
| Vast flexibility | Suitable for .DST,DSB and DSZ. |
| Satin stitch compensation | Satin stitch length can be enlarged or shortened. |
| Multi-language system | The system supports chinese,english,korean,spanish,turkish and others,which be convenient to different customers. |
| Auto speed control | Sewing speed is controlled according to design stitching characteristics,max speed up to 750-850RPM,high speed can up to 750-1000RPM. |
| Auto repeat | After making a settlement,the same design can be repeated up to 99 times in X and /or Y directions. |
| Embroidering pattern periphery idle running | This function can make idle running,the pattern periphery and center cross line can be embroidered,ti is very convenient to position using these methods. |
| Display of designing memory | Using large LCD.it is pattern while selecting pattern for embroidery and output. |
| High speed,lower speed idle running | It is more convenient for darning that using low speed idle ,high speed idle or other idle running. |
| USB Connector(Can choose) | Increasing USB connector to insert Udisc directly,with larger capacity,faster speed reading and writing,make it more convenient. |
